Small Hole Closed Loop Hall Effect Sensor Optimized Response Time CSM040GT5

Product Categories

Nanjing Chieful Science & Technology Co., Ltd.

Contact Now

Name: Small Hole Closed Loop Hall Effect Sensor Optimized Response Time CSM040GT5
Brand: chieful
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CSM040GT5

MOQ : 1-499 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : black

weight : 8 g

Diameter : 5.5 mm

Application : Automation

Product name : small hole current sensor CSM040GT5

Type : closed loop

Certificate : CE ,RoHS,ISO9001

Capacity : 10000pcs/month

Warranty : 5 years

Selling Units : Single item

Single package size : 23X18X7 cm

Single gross weight : 0.01 kg

Package Type : packing in bubble and carton

Contact Now

Small Hole Closed Loop Hall Effect Sensor Optimized Response Time CSM040GT5

Product Description

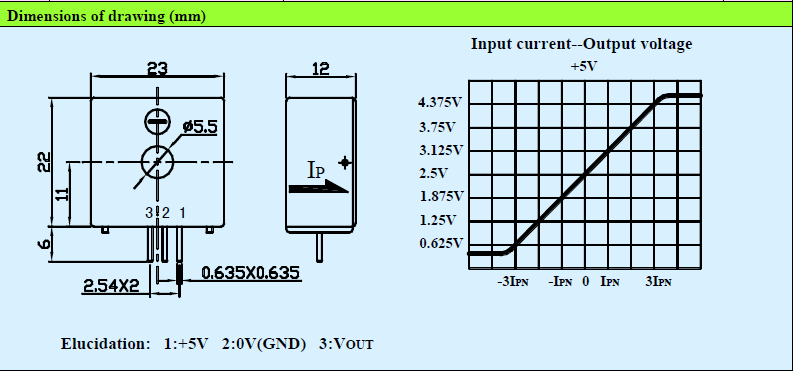

small hole current sensor CSM040GT5

Advantages

* Excellent accuracy

* Very good linearity

* Low temperature drift

* Optimized response time

* Wide frequency bandwidth

* No insertion losses

* High immunity to external interference

* Current overload capability

Electrical characteristics
	Type	CSM010GT5	CSM020GT5	CSM025GT5	CSM040GT5
I_PN	Primary nominal input current	10	20	25	40	A
I_P	Measuring range of primary current	0~±20	0~±30	0~±50	0~±80	A
K_N	Conversion ratio	1:1000	1:1000	1:1000	1:1000
R_M	Measuring resistance (V_C=±15V/ I_PN)	504(max)	237(max)	100(max)	56(max)	Ω
	(V_C=±15V/ I_P)	327(max)	147(max)	56(max)	21(max)	Ω
	(V_C=±18V/ I_P_N)	619(max)	293(max)	130(max)	75 (max)	Ω
	(V_C=±18V/ I_P)	397(max)	148(max)	75(max)	31(max)	Ω
V_C	Supply voltage	±12~±18(±5%)				V
I_C	Current consumption	V_C=±15V 20+Is				mA
V_D	Insulation voltage	AC/50Hz/1min 6				kV
ε_L	Linearity	<0.1				%FS
X	Accuracy	T_A=25℃ <±0.7				%
I₀	Zero offset current	T_A=25℃ <±0.25				mA
I_OM	Residual current	I_P→0 <±0.2				mA
I_OT	Thermal drift of I₀	I_P=0 T_A=-25~+85℃ <±0.65				mA
T_R	Response time	<1				μs
di/dt	di/dt accurately followed	>100				A/μs
f	Frequency bandwidth(-3dB)	DC~100				kHz
T_A	Ambient operating temperature	-25~+85				℃
T_S	Ambient storage temperature	-40~+100				℃
R_S	Secondary coil resistance	T_A=25℃ 22				Ω
	Standard	Q/3201CHGL02-2007
