Closed Loop Hall Current Sensor , Precision Current Transducer For Inverter

Name: Closed Loop Hall Current Sensor Precision Current Transducer For Inverter
Brand: chieful
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : chieful

Model Number : CSM015SY

MOQ : 1-999 Pieces

Price : Negotiable

Usage : Magnetic Sensor

Theory : Hall Sensor

Output : Analog Sensor

color : blue

weight : 13 g

Application : Automation

Product name : current transducer CSM015SY

Type : closed loop

Certificate : CE, RoHS,ISO9001

Capacity : 100000pcs/month

Warranty : 5 years

Selling Units : Single item

Single package size : 23X18X7 cm

Single gross weight : 0.013 kg

Package Type : packing in bubble and carton

Contact Now

Closed Loop Hall Current Sensor , Precision Current Transducer For Inverter

Product Description

Closed loop current sensor based on the principle of Hall-effect. It can be used for measuring AC,DC,pulsed and mixed current.

Product Application:

AC variable speed traction and electric traction

Static conversion with DC motor traction

Welding supply

Uninterrupted power,Switching power supply

Communication power supply

Advantages

* Excellent accuracy

* Very good linearity

* Low temperature drift

* Optimized response time

* Wide frequency bandwidth

* No insertion losses

* High immunity to external interference

* Current overload capability

Electrical characteristics
	Type	CSM005 SY	CSM010 SY	CSM015 SY	CSM020 SY	CSM025 SY	CSM030 SY	CSM050 SY
I_PN	Primary nominal input current	5	10	15	20	25	30	50	A
I_P	Measuring range of primary current	0~±10	0~±20	0~±30	0~±40	0~±50	0~±60	0~±100	A
K_N	Conversion ratio	3:1500	2:2000	1:1500	1:2000	1:2500	1:3000	1:3125
R_M	Measuring resistance	400	400	400	400	400	400	2500	Ω
V_C	Supply voltage	±12~±18(±5%)							V
I_C	Current consumption	V_C=±15V 20+Is							mA
V_D	Insulation voltage	AC/50Hz/1min 6							kV
ε_L	Linearity	<0.1							%FS
X	Accuracy	T_A=25℃ <±0.7							%
I₀	Zero offset current	T_A=25℃ <±0.25							mA
I_OM	Residual current	I_P→0 <±0.2							mA
I_OT	Thermal drift of I₀	I_P=0 T_A=-25~+85℃ <±0.65							mA
T_R	Response time	<1							μs
di/dt	di/dt accurately followed	>100							A/μs
f	Frequency bandwidth(-3dB)	DC~100							kHz
T_A	Ambient operating temperature	-25~+85							℃
T_S	Ambient storage temperature	-40~+100							℃
R_S	Secondary coil resistance	T_A=25℃ 22							Ω

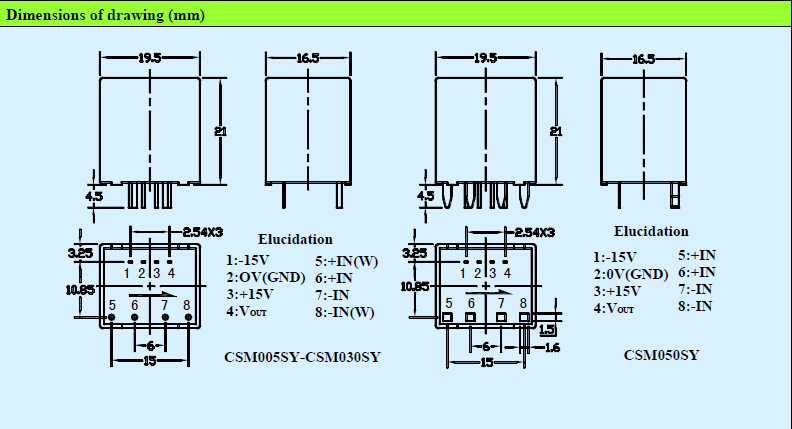

	Standard	Q/3201CHGL02-2007
